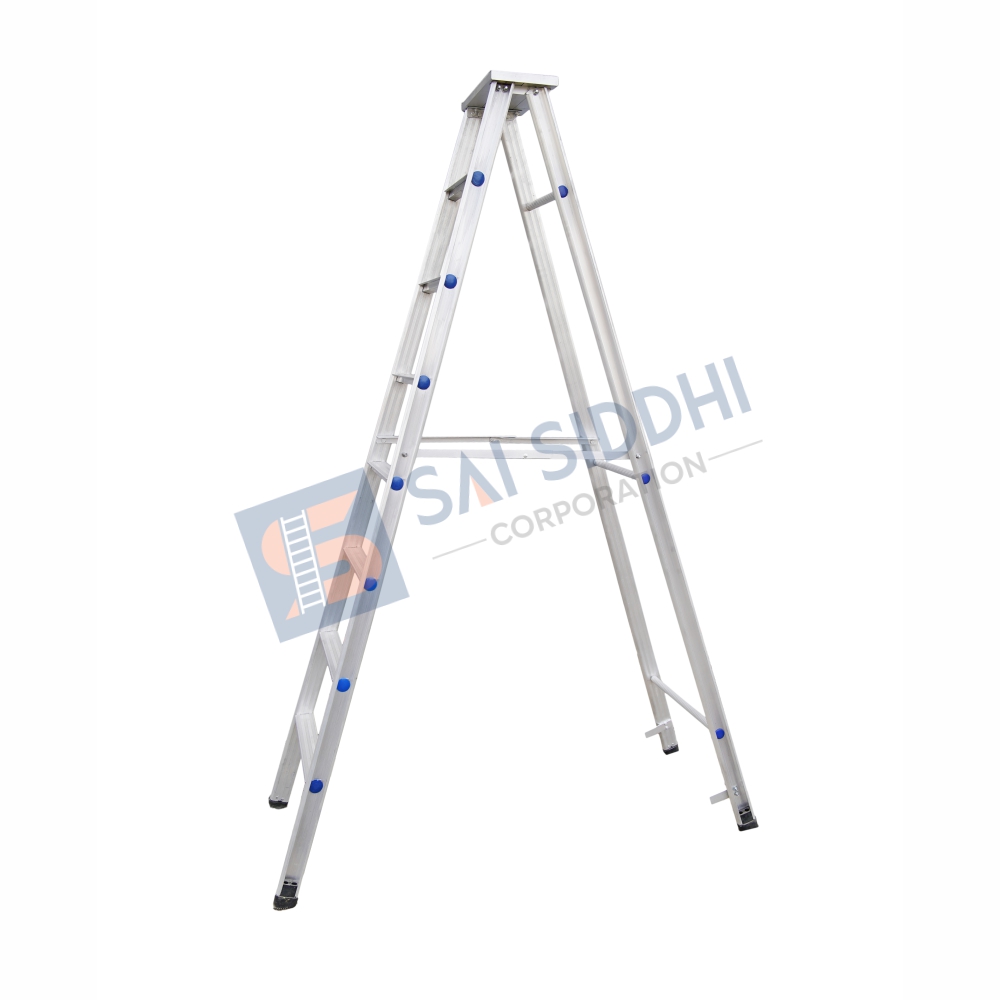

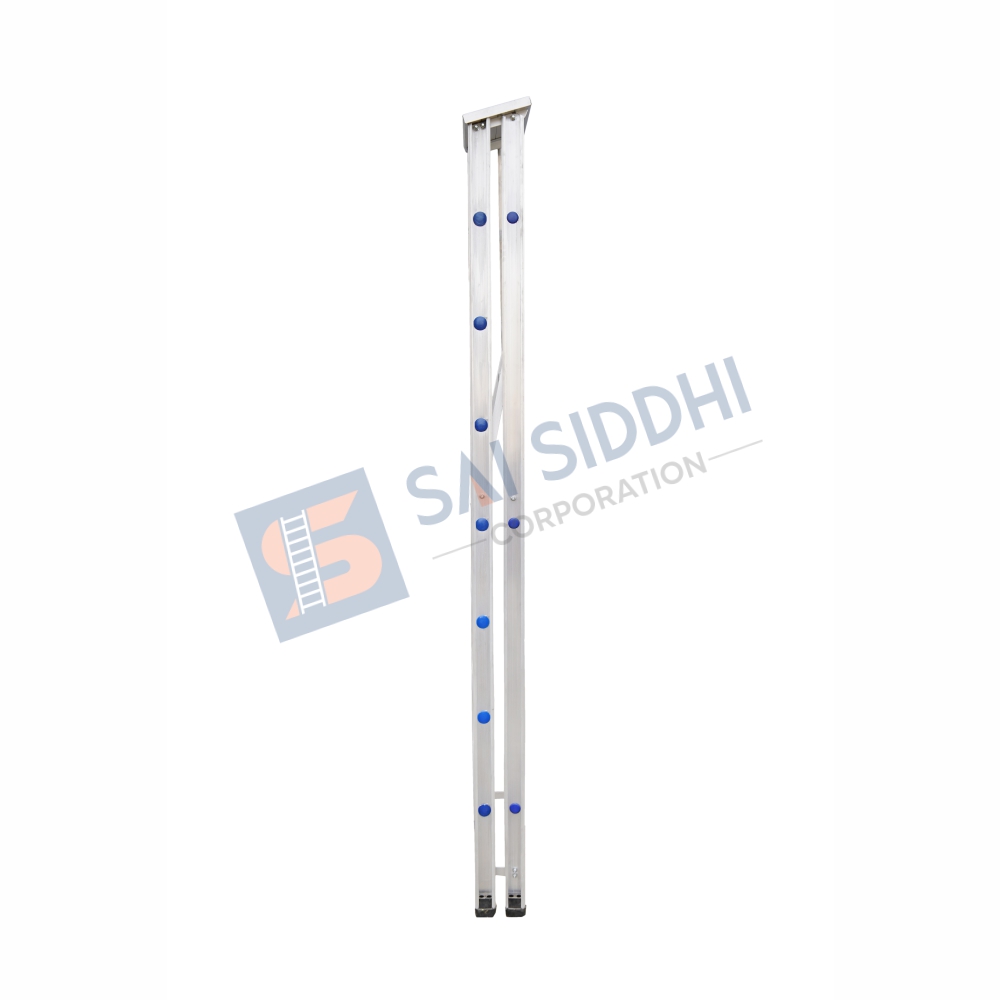

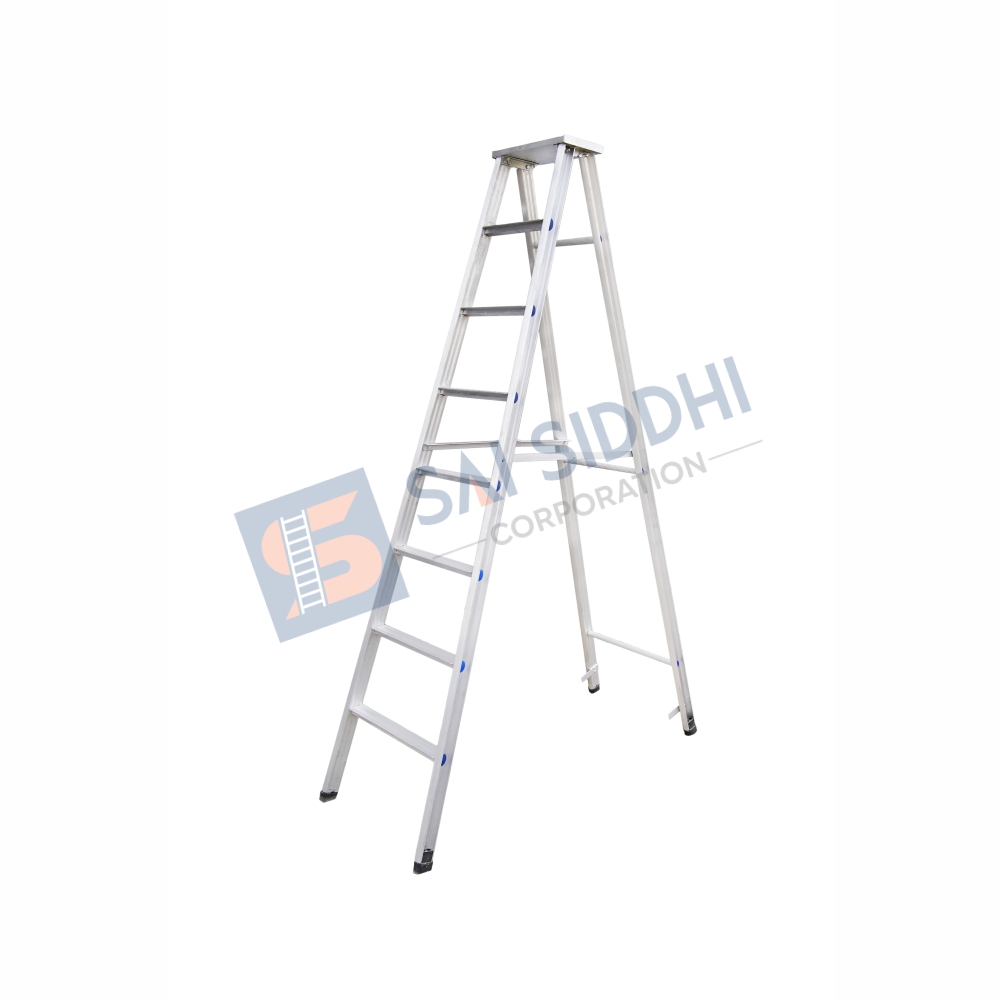

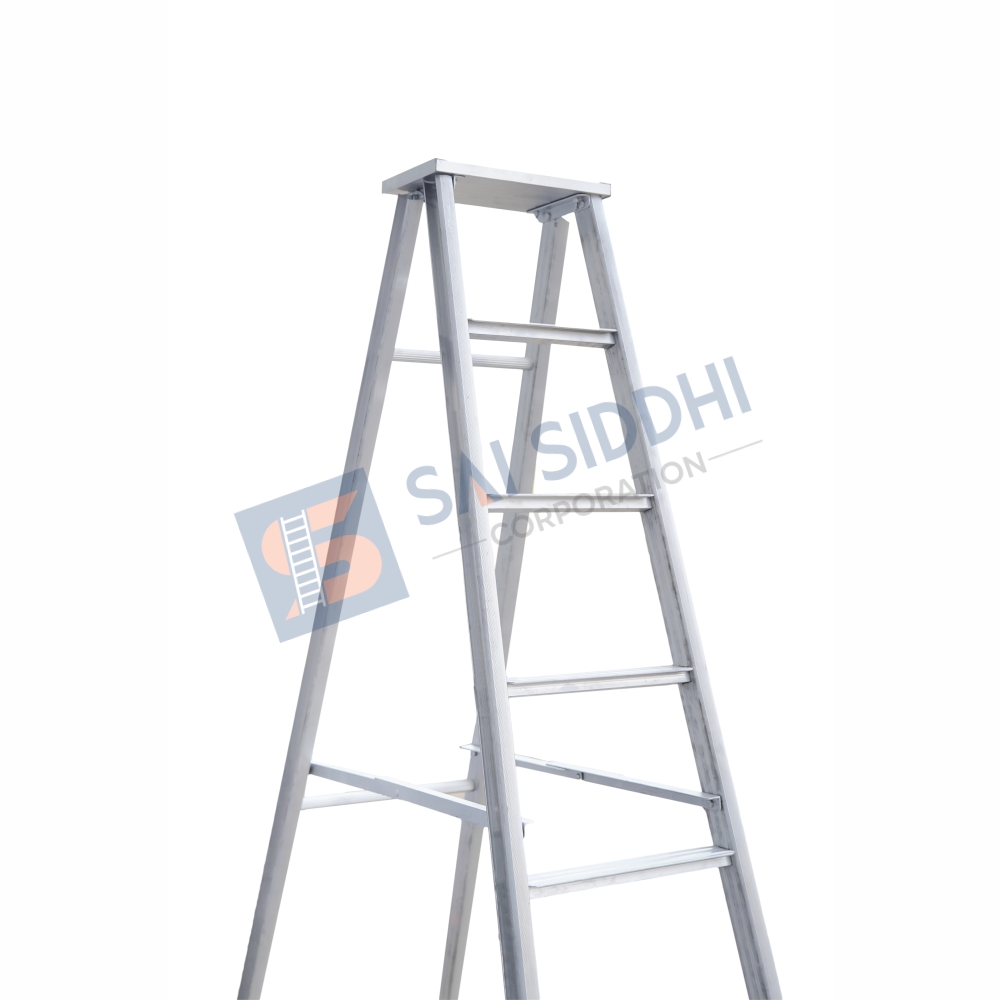

ALUMINUM FOLDING LADDER

ALUMINUM LADDER STEP TROLLEY (PREMIUM)

AVAILABLE SIZE

Platform Height	Overall Height
4 FT	7 FT
5 FT	8 FT
6 FT	9 FT
7 FT	10 FT
8 FT	11 FT
9 FT	12 FT
10 FT	13 FT
12 FT	15 FT
14 FT	17 FT

ALUMINUM ROAD STAR TOWER LADDER (BIG WHEEL)

AVAILABLE SIZE

CLOSED HEIGHT	EXTENDED HEIGHT
10 FT	18 FT
12 FT	21 FT
14 FT	25 FT
16 FT	29 FT
18 FT	32 FT
20 FT	35 FT

ALUMINUM SELF SUPPORT CUM EXTENSION LADDER

Technical Specifications

Feature	Standard Configuration
Material	High Tensile Aluminum Alloy (C-Channel Section)
Height Range	8 ft (Closed) to 35 ft+ (Extended)
Load Capacity	Up to 150 kg (Standard)
Rung Type	25 mm Anti-Slip Corrugated Round Tubes
Safety Locks	Gravity-based automatic safety catchers
Application	Industrial Maintenance, Electrical Works, Painting, & Cleaning

TWO SECTION

CLOSED HEIGHT	EXTENDED HEIGHT
7 FT	12 FT
8 FT	14 FT
10 FT	18 FT
12 FT	21 FT
14 FT	25 FT
16 FT	29 FT
18 FT	32 FT
20 FT	35 FT

Aluminum Tanker Ladder

Aluminium Tanker Ladder Aluminium Tanker Ladders are mainly used in Chemical Factories, Oil Companies, Refineries and many other Sectors. Aluminium

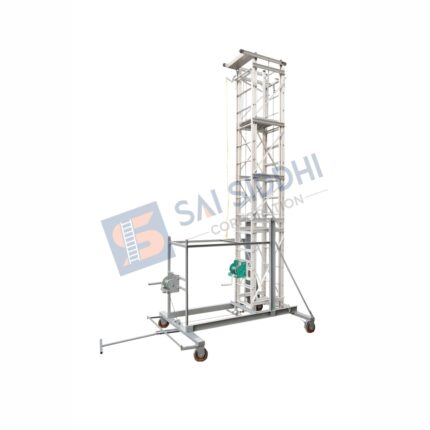

ALUMINUM TILTABLE TOWER LADDER

Aluminum Tower Ladders are manufactured from high tensile Aluminum alloy. Aluminum Tower Ladder provides you with extra comfort & safety with its non- slippery corrugated steps. These ladders are used where no wall support required. These ladders are equipped with wire rope, pulley, safety locks, solid hand cart at bottom to avoid surface scratching & skid.

Hindalco Aluminium Section Grade 6061 (T 6)
Aluminum C Channel Size 66 mm x 31 mm x 3.2 mm
Aluminum Fluted Pipe 25 mm
Weight Load Capacity 150 Kg.
Available up to 50 foot
Available in Two Section and Three Section
Winch Gear Capacity 500 Kg - 1000 Kg

Aluminum Extension ladders are used for Industrial purpose, Society Maintenance & other electric, cleaning purpose. Aluminium Tower Ladders are manufactured from C Channel and 25 mm round Fluted tubes. We used Aluminum Section 66 mm x 31 mm x 3.2 mm (minimum) & Aluminium Fluted Round tubes 25 mm. We used Aluminum Lock on every step to climb safely. We also used 8 mm to 10 mm wire rope to extend the ladder. We also provide safety Platform on top. These ladders are available up to 50 foot to 60 foot maximum. Ladder Base Dimension 8 to 9 foot Length and 5 to 6 foot width.
