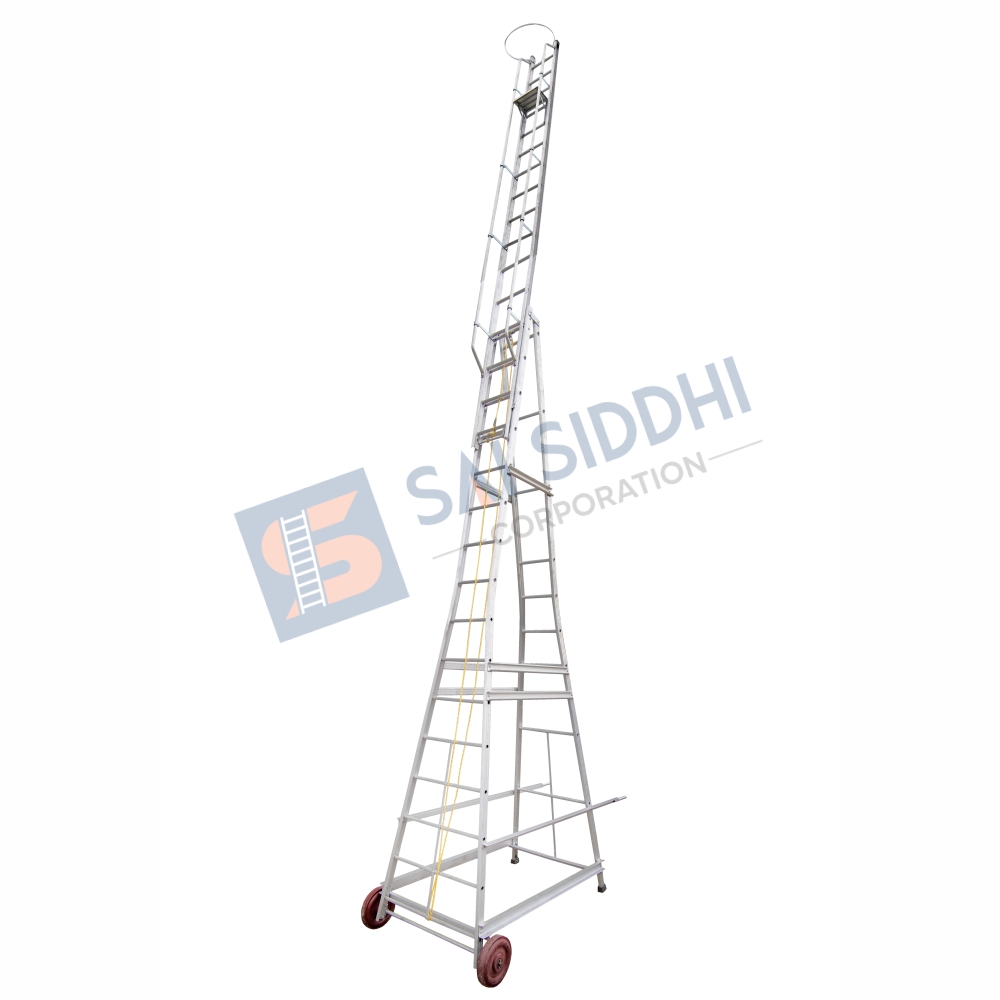

ALUMINUM ROAD STAR TOWER LADDER (SMALL WHEEL)
AVAILABLE SIZE
| CLOSED HEIGHT | EXTENDED HEIGHT |
| 10 FT | 18 FT |
| 12 FT | 21 FT |
| 14 FT | 25 FT |
| 16 FT | 29 FT |
| 18 FT | 32 FT |
| 20 FT | 35 FT |
ALUMINUM ROAD STAR TOWER LADDER (SMALL WHEEL)
Description: Aluminum Road Star Tower Ladders are manufactured from high tensile Aluminum alloy. Aluminum Road Star Tower Ladders Ladder provides you with extra comfort & safety with its non-slippery corrugated steps. These ladders are used where no wall support required. These ladders are equipped with P.P. Rope, pulley, safety locks, solid small polymer wheels at bottom to avoid surface scratching & skid. Polymer Wheel Size approx. 12” x 3”.
- Aluminum C Channel 66 mm x 31 mm x 3.2 mm
- Aluminum Fluted Steps 25 mm
- P P Rope 8 mm to 10 mm
- Weight Load Capacity 150 Kgs
- Two Years Warranty
Aluminum Extension ladders are used for Industrial purpose, Society Maintenance & other electric, cleaning purpose. Aluminum Self Support Extension Ladders are manufactured from C Channel & 25 mm round fluted tubes. We used Aluminum Section 66 mm x 31 mm x 3.2 mm (min) & Fluted Round tubes 25 mm. We used Aluminum Lock on every step to climb safely. We also used 10 mm P P rope to extend the ladder. We also provide safety Platform & Ring on top. These ladders are available up to 30 to 35 ft maximum. These ladders are used in various types of sectors like pharmaceuticals, Chemicals, Automobiles & Technology Sectors.
Related products
ALUMINUM LADDER STEP TROLLEY
ALUMINUM SELF SUPPORT CUM EXTENSION LADDER
Technical Specifications
| Feature | Standard Configuration |
| Material | High Tensile Aluminum Alloy (C-Channel Section) |
| Height Range | 8 ft (Closed) to 35 ft+ (Extended) |
| Load Capacity | Up to 150 kg (Standard) |
| Rung Type | 25 mm Anti-Slip Corrugated Round Tubes |
| Safety Locks | Gravity-based automatic safety catchers |
| Application | Industrial Maintenance, Electrical Works, Painting, & Cleaning |
| CLOSED HEIGHT | EXTENDED HEIGHT |
| 7 FT | 12 FT |
| 8 FT | 14 FT |
| 10 FT | 18 FT |
| 12 FT | 21 FT |
| 14 FT | 25 FT |
| 16 FT | 29 FT |
| 18 FT | 32 FT |
| 20 FT | 35 FT |
