SKU : 901

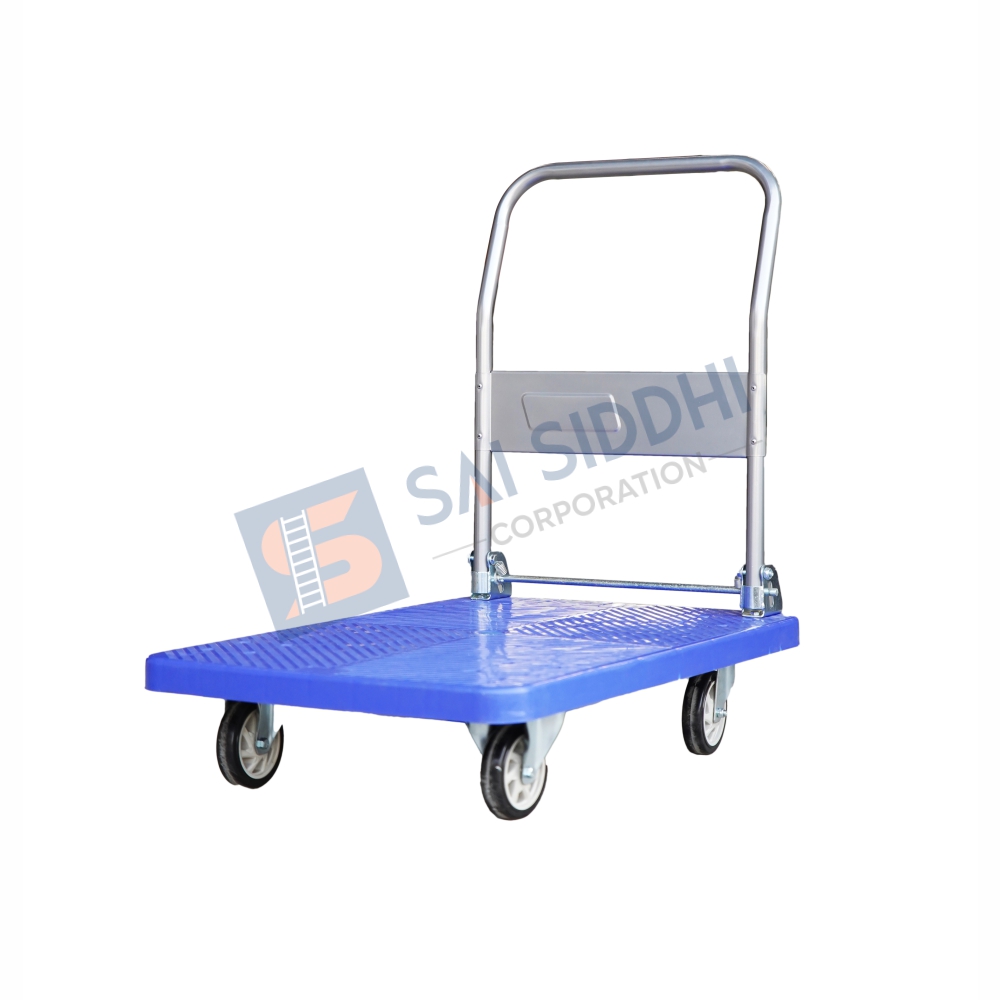

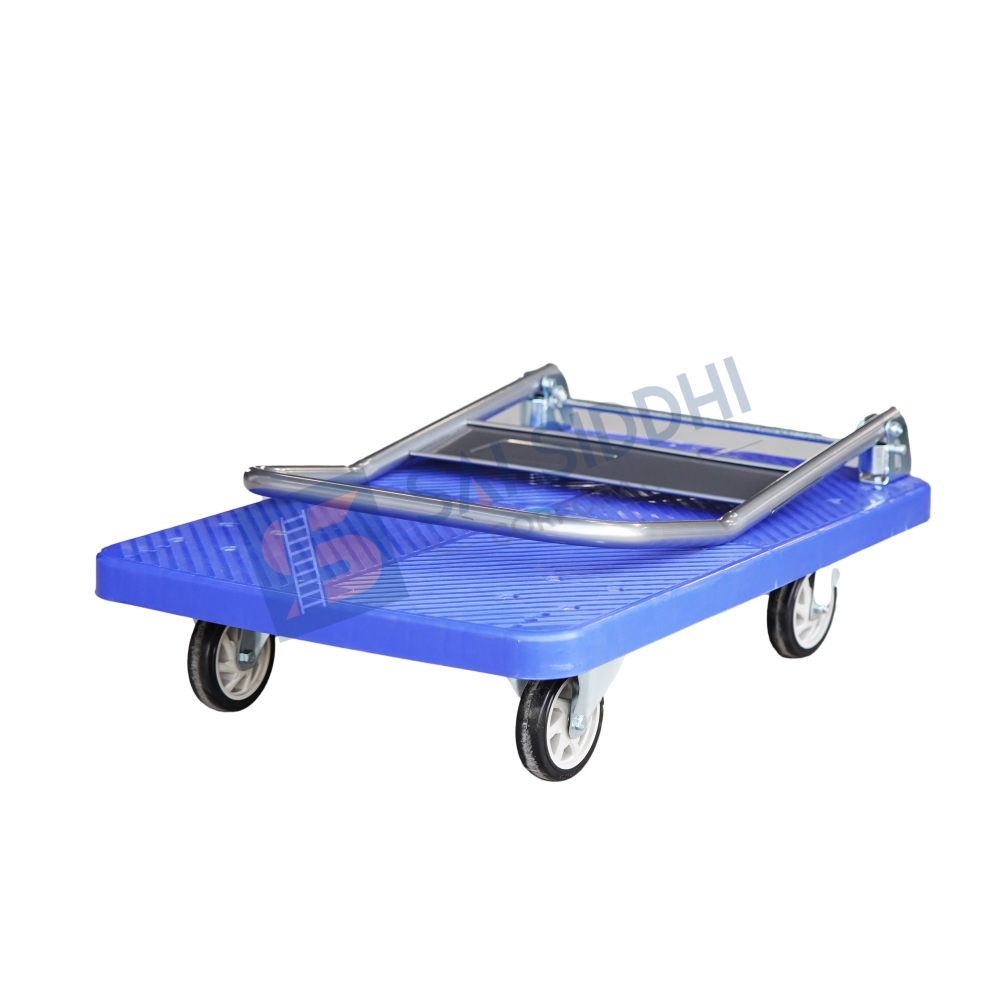

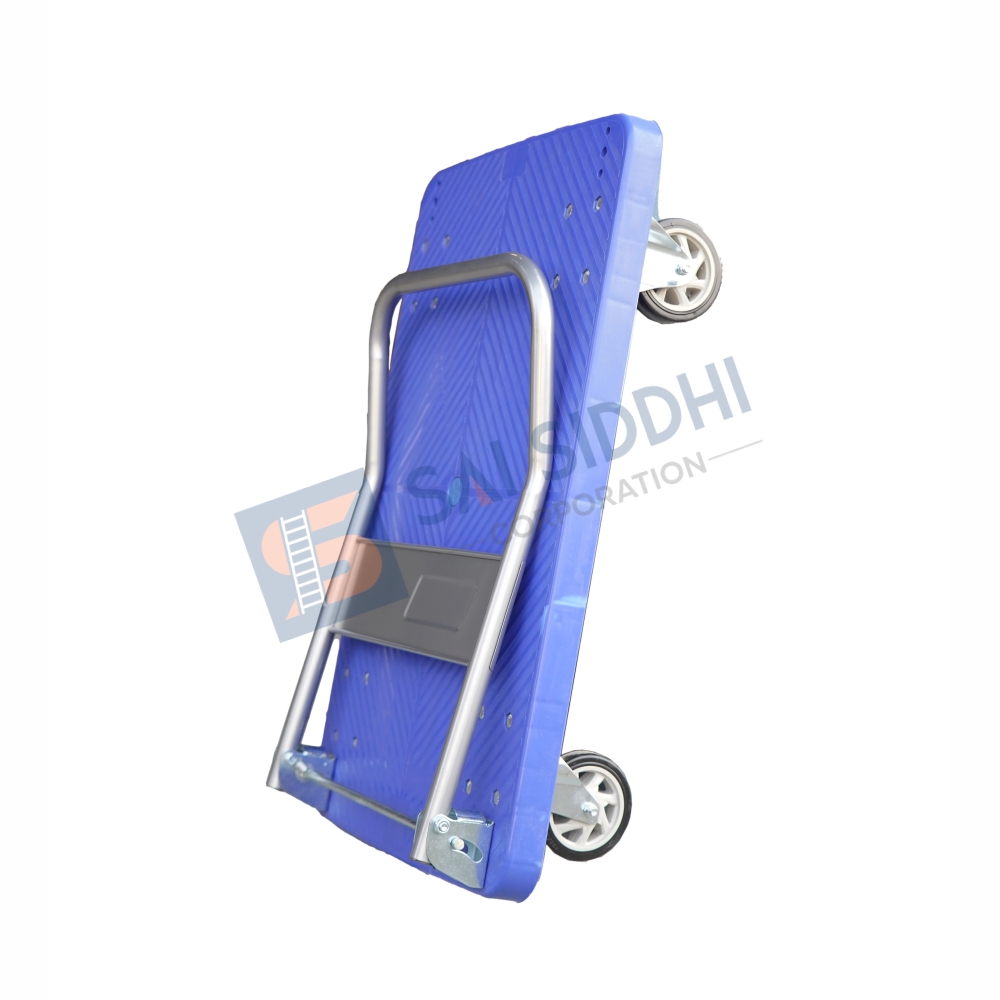

FIBER PLATFORM TROLLEY
Description
- Dimensions:
- Platform Size: 900 mm x 600 mm (length x width)
- Height: 850 mm
- Weight: 15 kg
- Materials:
- Platform Material: Reinforced fiberglass with anti-slip surface
- Frame Material: Powder-coated steel or aluminum
- Handle Material: Steel with ergonomic grip
- Load Capacity:
- Maximum Load: 300 kg
- Static Load: 400 kg
- Dynamic Load: 300 kg
- Wheels:
- Type: Swivel casters with brakes
- Material: Polyurethane (PU) or rubber
- Diameter: 150 mm
- Number of Wheels: 4 (2 fixed, 2 swivel with brakes)
- Ergonomics:
- Handle Height: Adjustable from 800 mm to 1000 mm
- Handle Design: Foldable or fixed
- Grip: Non-slip ergonomic grip
- Additional Features:
- Corrosion Resistance: High resistance to chemicals and corrosion
- Edge Protection: Rubber bumper on all edges
- Color: Customizable (standard color: blue or gray)
- Optional Accessories: Tool trays, side panels, and covers
- Certifications:
- ISO 9001: Quality Management
- ISO 14001: Environmental Management
- Load Test Certification: Ensures compliance with specified load capacity
- Environmental Conditions:
- Temperature Range: -20°C to 60°C
- Humidity: Suitable for use in high-humidity environments
- Maintenance:
- Cleaning: Easy to clean with water and mild detergents
- Repair: Modular design allows for easy replacement of parts
Reviews (0)
Shipping & Delivery
Related products

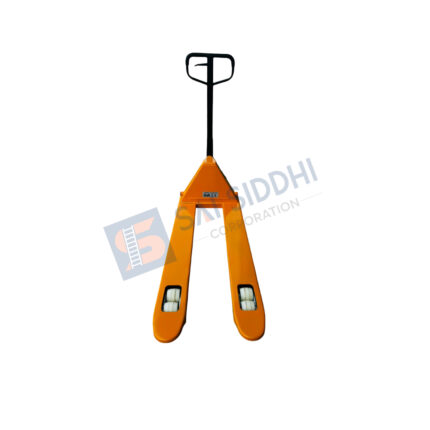

Hand Pallet Truck
